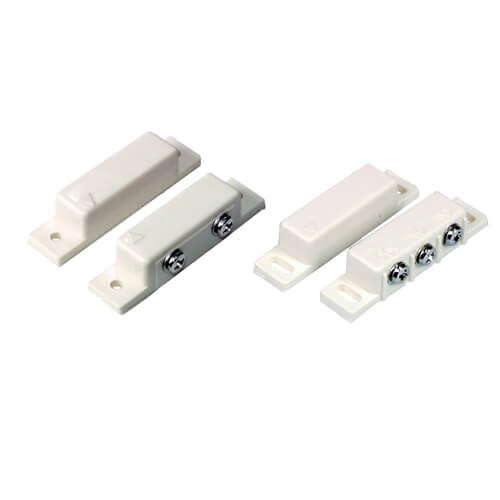

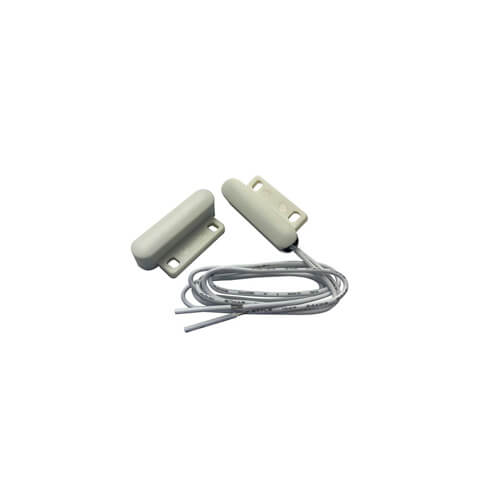

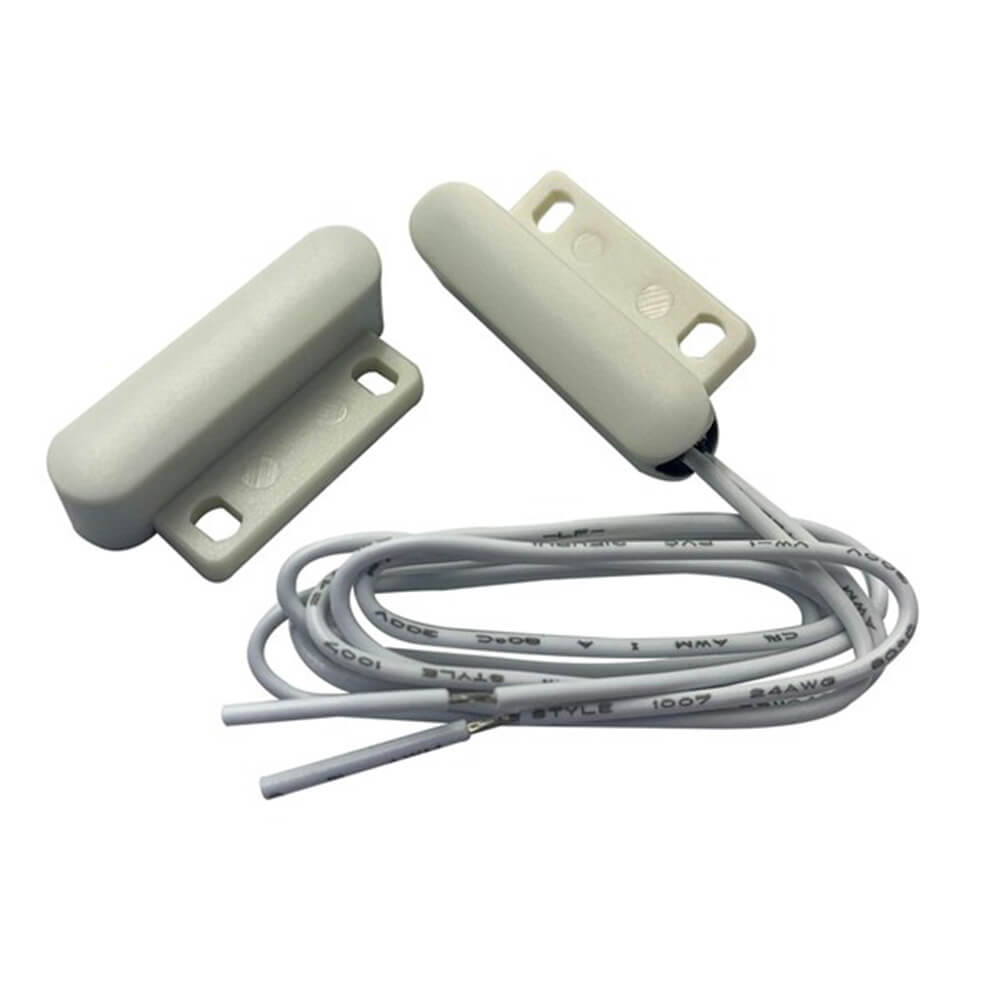

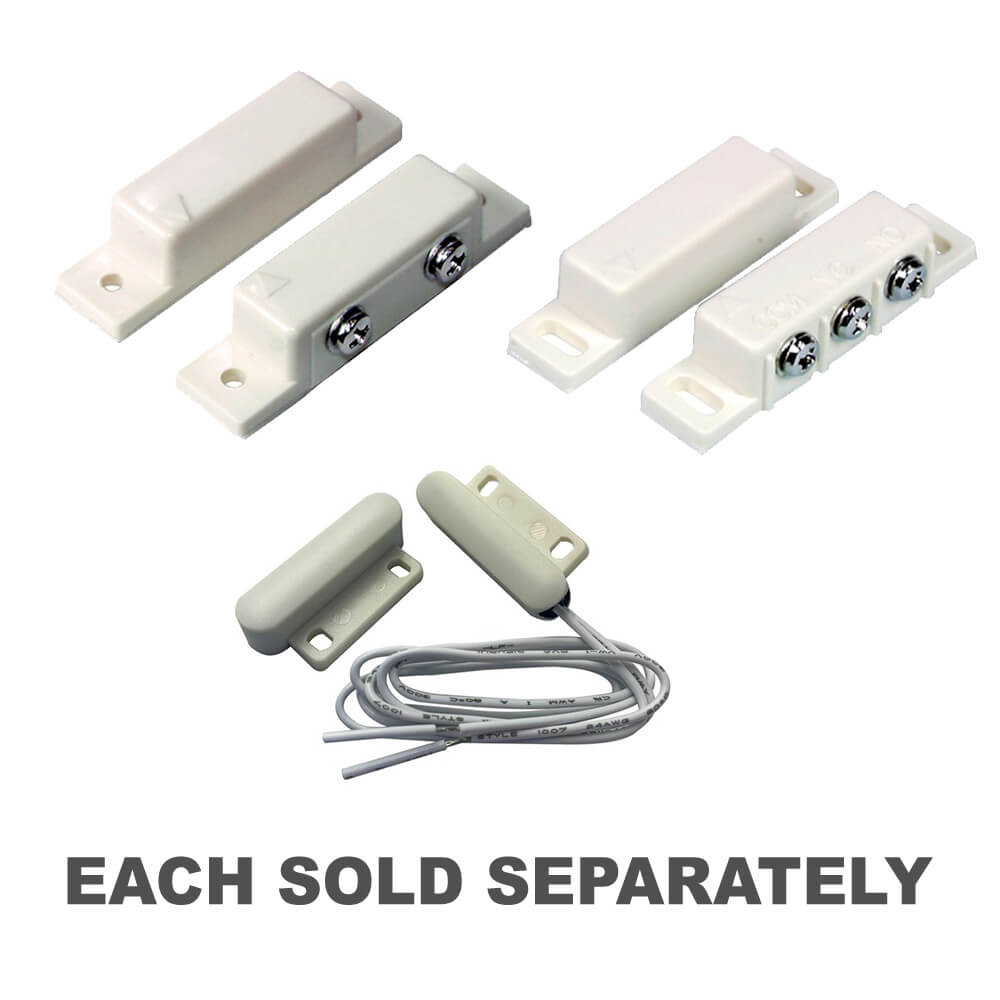

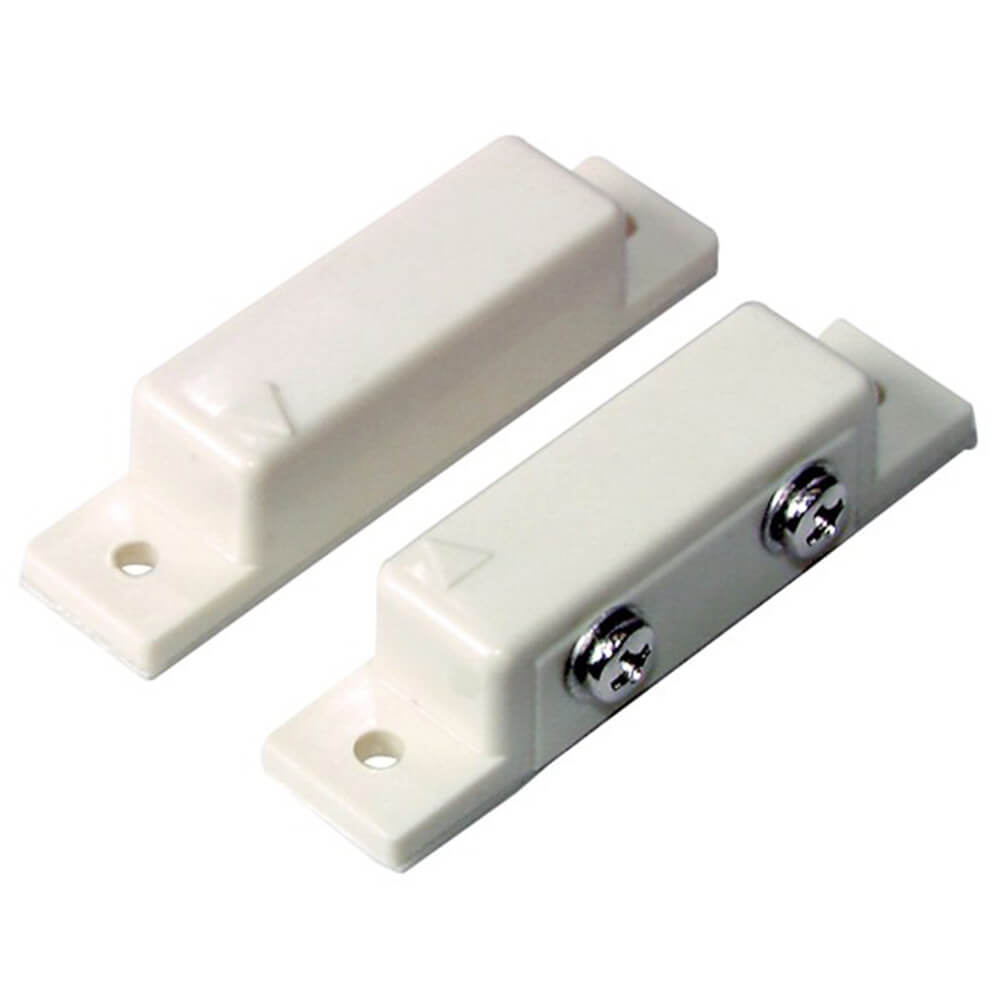

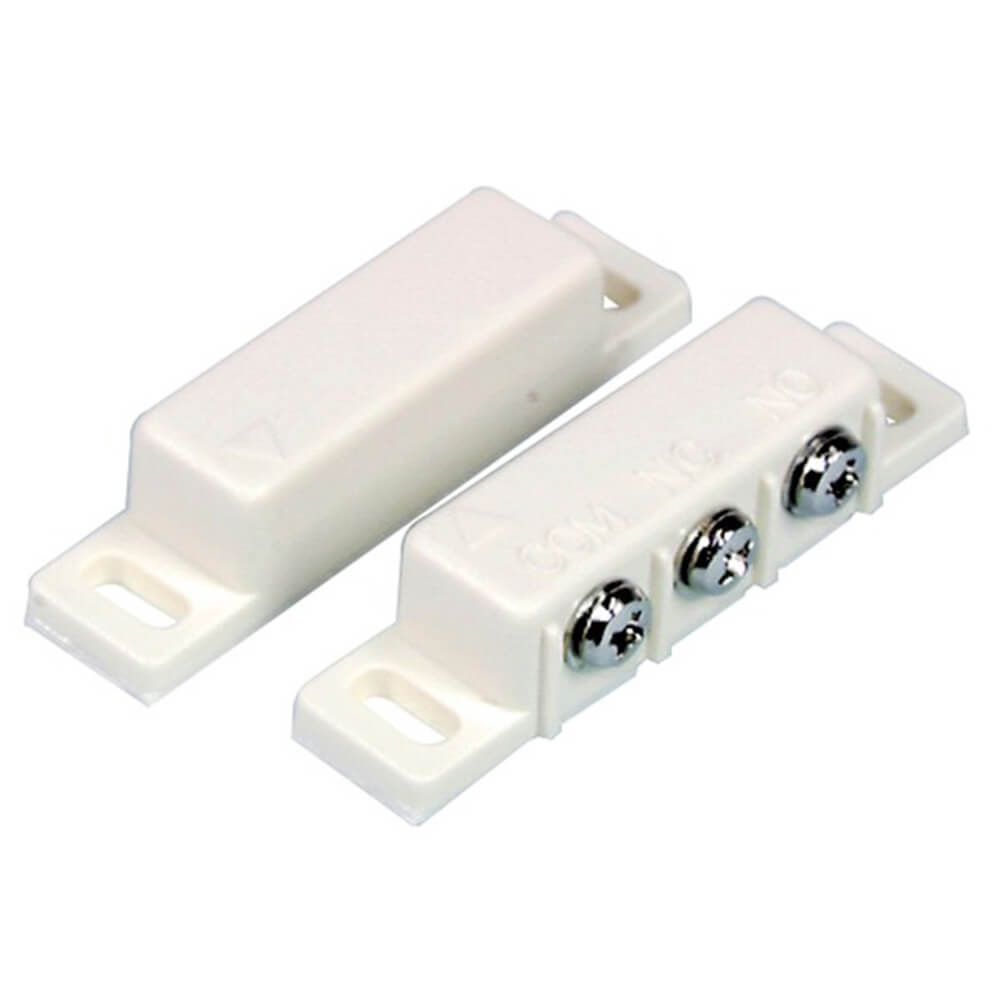

Absolutely tiny, these encapsulated reed/magnet switches with leads are ideal for home and car security. Their size should make them extremely easy to conceal so that potential thieves are less likely to disable them. Made from moulded plastic.
Reed Switch contacts: closed when both units are together (ie current flows), and open when apart.
Normally CLOSED (NC) per pair.
Product Specifications
- Dimension details : Dimensions identical on switch and magnet
- Length : 33mm
- Width : 15mm
- Depth : 8.5mm
- Cable length : 300mm
- Mounting Method : Surface
- Attachment / Securing Method : Screw Down
- Overall Screw Spacing (H) : 18mm
- Packaged Volume : 0.03l
- Packaged Weight : 0.01kg
- Packaged Length : 7.5cm
- Packaged Width : 3cm
- Packaged Height : 1.2cm
- Length : 7.5 cm
- Width : 3 cm
- Height : 1.2 cm
